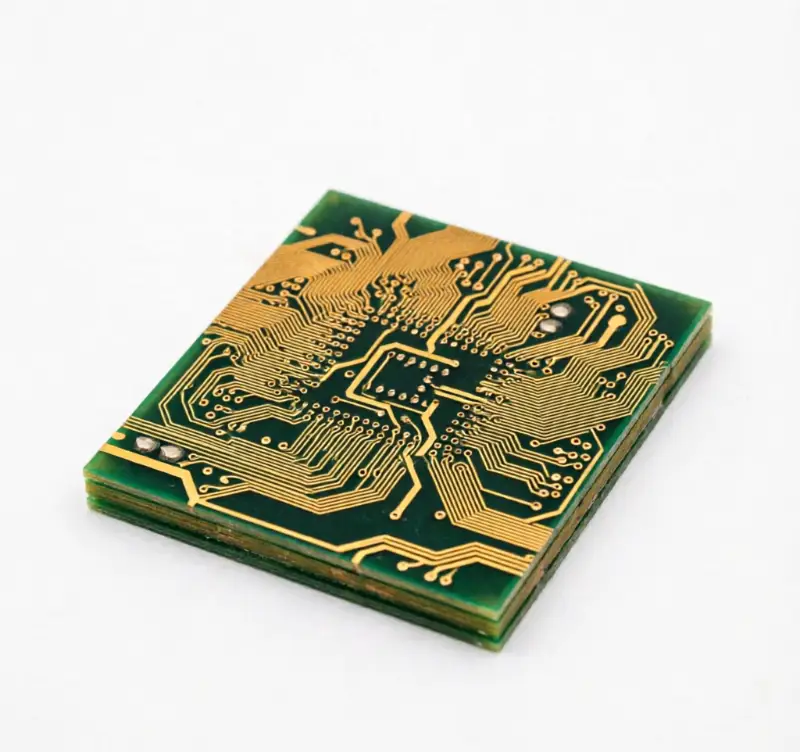

Copper‑Core PCB

Looking for a reliable copper-core PCB manufacturer to meet your high-performance electronics application needs? Geyuan Electronics offers superior copper-core PCB solutions with excellent thermal conductivity, meeting the demands of demanding projects. As a leading copper-based PCB supplier in China, we focus on advanced copper-core PCB manufacturing technology, ensuring optimal heat dissipation for your most challenging designs. Contact us now for a project quote.

Copper Core PCB Solutions and Suppliers

Are you looking for copper core PCB solutions and suppliers? Geyuan Electronics boasts over 10 years of experience in copper-based PCB manufacturing. We employ advanced manufacturing processes, utilizing laser direct imaging (LDI), automated AOI, and X-ray inspection to achieve tolerance control of ±0.075mm, ensuring over 99% production consistency. Prototype orders can be shipped within 24 hours and include complete DFM analysis; even complex designs can be delivered in two to three weeks for mass production. We support custom copper boards up to 12 oz thick for high-power applications, with performance validated through thermal cycling and HAST testing. With high-standard certified workflows and professional stack-up optimization engineering support, we effectively avoid delays caused by design modifications. Submit your specifications today and get a customized solution!

One-Stop Copper Core PCB Manufacturing Factory

Geyuan Electronics provides one-stop copper core PCB manufacturing and assembly solutions. We have a large production base of over 12,000 square meters in Shenzhen and Dongguan, China. Our PCBs meet safety and quality standards and are RoHS, UL, and ISO certified. We offer various types of copper core PCBs. We also excel at providing complete PCB assembly services. Our rigorous quality management system and professional team ensure the superior quality of our PCBs. We have no minimum order quantity and can provide prototypes quickly. We can handle small, medium, and even large batches of PCB orders. Please feel free to contact us for more information.

Engineering Capabilities

Our processes are designed to create engineering solutions that meet all your needs. We utilize Design Rule Checks (DRC) and Design for Manufacturability (DFM) checks to strive for the best results for you. Our experts will work with you to design an easy-to-manufacture PCB that meets your parameters while optimizing space utilization. We will also organize and optimize every step of the manufacturing process to ensure safety, compliance, and cost-effectiveness. Furthermore, our team of engineers will provide comprehensive design guidance and thermal optimization recommendations based on your specific application requirements. This collaborative approach ensures that your final product achieves optimal thermal performance and reliability.

Types of Copper-Based Printed Circuit Boards We Can Manufacture

We can manufacture different types of copper-core PCBs according to your project’s varying requirements for surface treatment and manufacturing processes. Geyuan Electronics can manufacture the following types of copper-core PCBs: Thermoelectric Separated Copper-Core PCBs, Hot Air Solder Horizontal (HASL) Copper-Core PCBs, Anti-Oxidation Copper-Core PCBs, Silver-Plated Copper-Core PCBs, Immersion Gold Copper-Core PCBs, Immersion Tin Copper-Core PCBs, Immersion Silver Copper-Core PCBs, etc.

Standard Multilayer Copper-Core PCBs

The most common type uses a simple layered structure: copper circuit layers, dielectric layers, and a copper substrate. When using standard dielectric materials, the thermal conductivity can reach 12 W/mK.

Single-Layer Copper-Core PCBs

Contains only one conductive layer. Commonly used in simple LED modules or low-power devices.

Double-Layer Copper-Core PCBs

Both sides are covered with copper layers. This design supports more complex wiring while maintaining good heat dissipation.

Multi-Layer Copper-Core PCBs

Contains multiple circuit layers with a copper core at the center. Ideal for high-power, high-density electronic devices.

Rigid-flex copper core PCB

Thin copper sheets using flexible and rigid substrates enable heat dissipation and flexible design.

Thermoelectric Separated Copper Core PCB

This advanced design separates the heat dissipation path from the circuit path. By removing the dielectric layer directly beneath the thermal pads, heat is transferred directly from the component's thermal pads to the copper substrate, achieving a thermal conductivity close to that of pure copper, reaching 398 W/mK.

COB (Chip-on-Board) Copper Foil PCB

COB packaging designs use wire bonding or flip-chip technology to mount semiconductor chips directly onto a copper substrate. This eliminates the thermal resistance of traditional component packages, making it an ideal solution for maximizing heat dissipation.

Hybrid Copper Core PCB

Hybrid designs combine a copper substrate with other materials such as FR4, ceramics (AlN, Al₂O₃), or PTFE. The copper substrate is used for heat dissipation in high-power sections, while FR4 handles signal routing in low-power areas.

Direct Thermal Path Copper PCB

This variant of the copper core PCB has no dielectric layer beneath the thermal pads. By removing the insulation layer beneath critical components, it achieves direct thermal bonding with the copper core. This design is ideal for applications requiring rapid heat dissipation.

Aluminum-Copper Hybrid PCB with Direct Heat Dissipation Path

This innovative design combines the advantages of copper and aluminum to create a cost-effective thermal management solution. Compared to all-copper designs, this hybrid approach offers superior thermal performance and lower cost.

Embedded Copper Core PCB

Embedded copper core PCBs take thermal management to a new level by directly integrating the copper core into the PCB structure. Embedded copper core PCBs are particularly useful in space-constrained applications.

Copper Core PCB + 2-Layer Rogers 4350B

This is a high-end structure suitable for high-frequency, high-power applications. It integrates a Rogers 4350B high-frequency laminate and a high-power copper heatsink, achieving professional-grade thermal management through controlled depth milling or drilling.

Copper Core PCB Manufacturer

Geyuan Electronics is a leading manufacturer of copper core circuit boards. We can customize PCBs to your project specifications. If you are working on high-power applications, you need a circuit board with the required heat resistance to ensure optimal performance. You may also have other size and structural requirements to create a high-efficiency PCB. Our team of engineers can provide customized solutions for your copper core PCB needs, taking advantage of the high thermal conductivity of custom-designed copper core circuit boards. Contact our team today to discuss your project parameters. Our customer service team is ready to support you with your PCB needs.

What is a Copper Core PCB?

A copper core PCB is a special metal-based PCB design that uses copper as its substrate, offering superior heat dissipation. This advanced circuit board employs a multi-layer structure, including a copper substrate, dielectric layers, and circuit layers, achieving a thermal conductivity of 380-400 W/mK, far exceeding that of standard FR4 PCB materials. Our copper-based PCBs are the ideal choice when standard printed circuit boards cannot meet your heat dissipation needs. As a company integrating copper core PCB production and PCB manufacturing, Geyuan Electronics provides a variety of customized copper-based PCB solutions that maintain reliability even under extreme operating conditions.

Geyuan Electronics Introduces Advanced Copper Core PCB Structures

Geyuan Electronics has developed a variety of cutting-edge copper core circuit structures that deliver superior performance for specific applications. Our R&D team pioneered these advanced PCB designs based on proven thermal management principles.

Selective Dielectric Thickness Control

Forming copper and insulating layers of varying thicknesses throughout the entire area optimizes thermal paths. Dielectric layer thickness can be reduced to 50μm while maintaining electrical isolation, even in high-temperature component environments.

Double-Sided Copper Core Design

Utilizing copper or aluminum substrates between multiple circuit layers enables three-dimensional thermal management, supporting multi-layer PCB designs and distributed heat dissipation throughout the stack.

Copper-Ceramic Hybrid Substrate

Combining a metal base with specialized PCB materials achieves optimal performance, providing an optimal match for applications where PCBs are among the most expensive yet critical to system performance.

Integrated Thermal Via Array

Forming a precisely positioned network that connects to the core PCB enhances thermal performance. In this type of PCB, heat conduction paths are formed through surface components, maximizing heat transfer efficiency.

Comprehensive Copper-Based PCB Manufacturing Services

Copper Core PCB Prototyping

We offer fast-turnaround copper core PCB prototyping services for engineers looking to validate their thermal designs. Prototyping services include design feedback, material consultation, and rapid delivery, easily handling even complex structures.

Copper Core PCB Assembly

We provide complete copper core PCB assembly services, with all processes completed in-house. From surface mounting to through-hole soldering, each board is manufactured to strict specifications. Inspection services such as AOI, X-ray, and functional testing ensure product reliability.

Copper Base PCB Manufacturing Capabilities

MCPCB layer quantity	1 to 8
Copper base PCB types	single-sided PCB, double-sided PCB
Turnaround time	1 day to 4 weeks
Max. copper base PCB size	1200mm * 480mm
Min. copper base PCB size	5mm * 5mm
Copper-core PCB thickness	0.5mm to 5.0mm
Circuit copper thickness	35μm, 70μm, 105μm, 140μm, 175μm, 210μm, 245μm, 280μm, 315μm, 350μm
Via wall copper thickness	20μm to 35μm
Min. trace width/space	0.1mm/0.1mm
Min. punching hole aperture	1.0mm
PCB routing tolerance	CNC routing: ±0.1mm, punching: ±0.1mm
Min. drill diameter	0.6mm
Min. solder mask opening	0.35mm
Surface finish	ENIG: Au 0.0254μm to 0.127μm, Ni 5μm to 6μm OSP HASL (LF): 40μm to 100μm silver plating: Ag 3μm to 8μm gold plating: Au 0.1μm to 0.5μm, Ni 4μm to 6μm

Custom Copper Core PCBs

Geyuan Electronics offers comprehensive, customized solutions for metal-backed copper PCBs. Working with our engineering team ensures your project parameters are met. We conduct thorough design reviews, perform extensive testing, and deliver superior solutions for easy manufacturing, rapid turnaround, and delivery. We use alumina epoxy resin to bond the metal-backed copper substrate, a bonding method that significantly improves the board’s thermal conductivity compared to traditional prepreg bonding. This ensures your design achieves the required heat dissipation levels, resulting in superior quality products.

Contact Geyuan Electronics Today for Your Copper Core PCBs

Need copper-based PCBs? Look no further! Choose Geyuan Electronics! We are the best copper-core PCB manufacturer, and you can trust our quality and reliability. We can provide the best copper-core PCB services to meet your application's requirements for the ideal copper-based PCB. We manufacture copper-core PCBs with short lead times, strict quality control, and excellent service. Contact us now for a quote.

Contact Geyuan Electronics

Advanced Copper Core PCB Manufacturing Capabilities

Geyuan Electronics boasts over 15 years of experience in manufacturing advanced thermal management PCBs. Our engineering team focuses on copper core technology and deeply understands the unique challenges of this type of board. I personally work closely with numerous industrial clients to ensure their designs maximize the advantages of copper core technology. Our production facilities are equipped with specialized equipment for copper core PCB manufacturing, including: a high-precision drilling system for accurately machining thick copper cores; advanced laminators with precise temperature and pressure control; an automated optical inspection system calibrated to copper core specifications; and thermal testing equipment for verifying performance before shipment. These capabilities enable us to maintain rigorous quality control throughout the manufacturing process, ensuring consistent performance across production batches.

Professional Copper Core PCB Manufacturing Technology

Manufacturing copper core PCBs requires specialized equipment and technology not available in standard PCB factories. The copper substrate presents unique challenges in drilling, etching, and lamination processes. At Geyuan Electronics, we have invested in specialized equipment and developed the necessary manufacturing processes to consistently produce high-quality copper core PCBs. Drilling through the copper core requires special drill bits and strictly controlled drilling parameters to prevent burrs and maintain hole quality. Our precision drilling equipment maintains tight tolerances even when drilling through thick copper layers, ensuring reliable plated through-holes that meet IPC standards.

Browse Different PCB Solutions for Every Need

Looking for the right PCB solution? Explore various types of PCBs to find the perfect match for your project.

Aluminum PCB

PCBs with aluminum metal core for efficient heat dissipation in high‑power designs.

Rigid PCB

Standard rigid FR4 boards offering stable structure for general electronic systems.

High-TG PCB

PCBs made with high glass transition temperature (Tg) materials, typically 170°C and above.

High Frequency PCB

PCBs designed to handle signals in the GHz range with minimal signal loss and distortion.

High Speed PCB

Circuit boards optimized for high-speed digital signals with careful attention to signal integrity.

HDI PCB

High Density Interconnect PCBs with finer lines, smaller vias, and higher connection density.

Rogers PCB

PCBs manufactured using Rogers Corporation's high-performance laminate materials.

Heavy Copper PCB

PCBs with exceptionally thick copper layers, typically 3 oz or more, for high-current applications.

Flexible PCB

Bendable PCBs made with polyimide or polyester substrates for dynamic or space-constrained designs.

Rigid-Flex PCB

Hybrid circuit boards that combine rigid and flexible substrates into a single integrated assembly.

Ceramic PCB

Using ceramic substrates like Al₂O₃ and AlN for extreme thermal and electrical performance.

Material Selection

Material Selection	Recommended Specification
Copper Base Thickness	1.0mm – 2.0mm (standard), 3.0mm+ (extreme power)
Dielectric Thermal Conductivity	≥2 W/mK (standard), ≥3 W/mK (high performance)
Circuit Copper Thickness	2-4 oz for power areas, 1-2 oz for signal areas
Solder Mask	White recommended for LED applications
Surface Finish	ENIG, OSP, or Immersion Tin

Comprehensive Quality Assurance

Every copper-core PCB we manufacture undergoes rigorous testing to verify its electrical integrity and thermal performance. Our quality assurance process includes: 100% electrical testing using flying probes or specialized test fixtures; thermal imaging verification under simulated load conditions; cross-sectional analysis to verify internal structural quality; and verification of material composition to ensure thermal conductivity meets specifications. This comprehensive testing ensures the circuit boards function as expected in your industrial equipment, avoiding costly field failures and warranty issues.

Applications of Copper-Based Printed Circuit Boards

Customized copper-based PCBs can meet the specific needs of different customers, providing copper substrates that precisely meet requirements. Custom copper core PCBs can meet specifications such as different sizes, shapes, and thicknesses, thus finding wide application across various industries.

LED Lighting

High-power LED systems for efficient heat dissipation (e.g., automotive headlights, industrial lighting).

Power Electronics

Core components in electric vehicles (EVs), renewable energy, and industrial automation to withstand high current and high temperatures.

Consumer Electronics

Used in gaming laptops, 5G routers, and other consumer electronics devices for compact design and optimized thermal management.

Medical Devices

Ensuring accuracy and thermal stability in medical imaging and diagnostic equipment.

Telecommunications

Supporting high-speed data transmission in 5G base stations, network switches, and communication equipment.

Industrial Control

Providing stability for PLCs, robots, and factory automation in harsh environments.

Renewable Energy

Efficient power management for solar inverters, wind turbines, and energy storage systems.

High-Performance Computing

Solving processor heat issues in servers, AI accelerators, and high-density computing.

Automotive Electronics

Ensuring the reliability of engine control units (ECUs), battery management systems (BMS), and charging infrastructure.

FAQ

What is the difference between copper-core PCBs and thick copper PCBs?

These are two completely different PCB products. A copper-core PCB uses copper as the substrate, with all other components mounted on top. A thick copper PCB refers to a PCB with thicker copper circuit traces (typically 3 ounces or more) on any substrate, including FR4, aluminum, or copper. You can choose a copper-core PCB using standard 1-2 ounces of circuit copper, or a thick copper PCB built on an FR4 substrate. Some high-power designs combine both: using thick copper circuitry on a copper-core substrate for maximum current handling and heat dissipation.

How much does a copper-core PCB cost compared to an aluminum-core or FR4 PCB?

A copper-core PCB typically costs 2-3 times more than an equivalent aluminum-core PCB and 4-5 times more than an FR4 PCB. The specific premium depends on the complexity, number of components, and specifications of the board. However, a cost analysis should include the cost of the entire system.

Can copper-core PCBs be multilayered?

Yes, copper-core PCBs can be manufactured in multilayer structures with up to 8 layers, but 1-2 layer designs are most common. Multilayer copper-core PCBs are more complex and costly to manufacture because drilling and electroplating on the copper substrate require specialized processes. For applications requiring more circuit layers, a hybrid design combining a copper heat sink with an FR4 signal layer can be considered.

What are the best surface treatments for copper-core PCBs?

Recommended surface treatments include electroless nickel immersion gold (ENIG), organic solderability preservative (OSP), immersion silver, and immersion tin. Hot air leveling (HASL) is also applicable but may be less common. The specific choice depends on component requirements, shelf-life needs, and cost constraints.

What tests does Geyuan Electronics use to verify the performance of its copper-core PCBs?

We primarily use infrared thermal imaging technology for comprehensive thermal verification of our copper-core PCBs. This test verifies the actual heat dissipation across the entire PCB surface and identifies potential hot spots. Our PCB factory also conducts reliability testing to ensure stable performance under various operating conditions.

What is the typical copper foil thickness for copper-core printed circuit boards?

The copper substrate thickness ranges from 0.5 mm to 3.2 mm. Circuit layer thickness typically varies between 1 ounce and 6 ounces, depending on the current load.

What information do you need to obtain a quote for a copper core PCB?

Please provide Gerber files, NC drilling files, board outline, stack-up details, material information, copper foil thickness, surface finish, quantity, and expected delivery time. For PCBA or assembly-related work, you will also need a Bill of Materials (BOM) including manufacturer part numbers, surface mount data, assembly drawings, DNP specifications, and testing requirements.

Ready to Start Your Copper Core PCB Project?

Send your project information to XFPCB and our team will review the key manufacturing or assembly details. A complete RFQ helps us respond with a more accurate quote and a clearer production plan.
For bare PCB projects, include Gerber, drill, stackup, material, copper, finish, quantity and lead time.For PCBA projects, include BOM, pick-and-place file, assembly drawing, test notes and approved alternatives.For application-specific projects, share operating environment, reliability expectations and packaging needs.
