FR4 PCB
Geyuan Electronics manufactures FR-4 circuit boards—including single-sided, double-sided, multilayer, high-Tg, heavy copper, and impedance-controlled types—covering everything from prototyping to mass production. We offer 24-hour rapid delivery and support high-precision impedance control for up to 32 layers. Our in-house facilities and smart manufacturing capabilities help reduce costs and boost efficiency. Contact us today for a project quote.
One-Stop Custom FR4 PCB Manufacturer
If you are looking for a professional manufacturer of custom FR-4 PCBs, Geyuan Electronics offers the ideal solution. As one of the world’s most experienced FR4 PCB manufacturers, Geyuan Electronics is dedicated to providing high-quality FR4 PCB products and professional customer service. We offer a comprehensive one-stop service that includes component sourcing, PCB prototyping and production, PCB assembly, quality testing, and final shipment. Whether you require prototyping, small-batch production, or mass production, we can meet your needs. Submit your FR4 PCB design files today, and our team will provide professional DFM optimization and a customized PCB manufacturing solution.
20 Years of Experience in Custom FR-4 PCB Projects
FR-4 is the most widely used PCB substrate, and virtually all manufacturers can produce it. However, the Geyuan Electronics team possesses 20 years of operational and technical expertise, enabling us to go further and provide a broader, more advanced range of services. We offer comprehensive FR-4 PCB solutions, spanning everything from design concepts to complete system assembly. Leveraging sequential lamination technology, we can construct highly complex multilayer structures—including 4+N+4 configurations—and tailor specifications such as board thickness, copper weight, thermal resistance (Tg), surface finish, and precision tolerances to your exact requirements. This means we can meet the needs of virtually any project. With standardized production processes, rigorous quality control systems, and flexible customization capabilities, we are able to satisfy the diverse custom FR-4 PCB needs of engineers, designers, and businesses worldwide.
DFM Analysis and Engineering Support
Geyuan Electronics provides DFM analysis and engineering support throughout every stage of your custom FR4 PCB manufacturing. Our engineers are actively involved from the initial layout review, identifying and resolving manufacturing risks before they escalate into production issues. Our Design for Manufacturability (DFM) efforts focus on factors that directly impact yield and reliability: stack-up design, impedance control, thermal management, and process constraints. We leverage these insights to optimize the layout and reduce unnecessary costs. We also review the Bill of Materials (BOM) and recommend alternative components—provided specifications, certifications, and availability remain comparable.
FR4 Material Grades and Applications
Standard FR4
A cost-effective solution for general-purpose electronics, featuring a glass transition temperature (Tg) of 130–140°C; suitable for consumer electronics and basic industrial applications.
High-Tg FR4
Offers enhanced thermal stability with a Tg of 150–180°C; designed for automotive electronics, power management systems, and applications requiring performance across a wider temperature range.
Halogen-Free FR4
Compliant with RoHS directives and environmental regulations; an ideal choice for medical devices, aerospace applications, and the development of eco-friendly products.
High-CTI FR4 PCB
These boards feature a Comparative Tracking Index (CTI) exceeding 600V, helping to prevent leakage current and electrical failures in humid or high-voltage environments.
Low-Loss FR4
Low-loss FR4 is a suitable choice when insertion loss and timing budget requirements exceed the capabilities of standard FR4, yet the design can still be manufactured using FR4-compatible processes.
FR-4 PCB Manufacturing
Our industry-leading manufacturing capabilities support projects ranging from prototypes to mass production, covering standard FR-4, multi-layer, impedance-controlled, HDI, and heavy-copper designs. Our manufacturing scope extends to 64 layers, copper weights up to 20 oz, trace/space down to 2/2 mil, laser microvias, and impedance control precision of ±5%. We can also manufacture boards with maximum dimensions of 24″ x 30″ and produce boards featuring buried vias and microvias. With experts like us, there is no need to look elsewhere for FR-4 PCBs; regardless of order size, we always put you first. If you are looking for high-quality, defect-free products delivered on time—with no hidden costs and friendly, responsive customer support whenever you need it—Geyuan Electronics is the ideal choice.
Comprehensive FR4 Manufacturing Capabilities
| Item | FR-4 PCB Capability |
|---|---|
| PCB Type | Rigid FR-4 printed circuit boards. |
| Layer Count | 1–32 layers, subject to board construction and engineering review. |
| Board Construction | Single-sided, double-sided, multilayer, HDI, and high-density FR-4 PCB designs. |
| Standard Material | Standard FR-4 glass-reinforced epoxy laminate. |
| Material Options | High-Tg FR-4, halogen-free FR-4, high-CTI FR-4, and selected low-loss materials available upon engineering review. |
| Board Thickness | Common board thicknesses from 0.4 mm to 3.2 mm. Custom thicknesses are available based on material availability and stack-up requirements. |
| Copper Weight | 0.5 oz to 6 oz copper for standard designs. Heavy-copper construction is available for higher-current applications upon review. |
| Minimum Trace / Space | Determined by copper thickness, layer count, board structure, and production requirements. Fine-line routing is available for HDI designs. |
| Minimum Hole Size | Mechanical drilling and laser drilling are available according to board thickness, aspect ratio, and via design requirements. |
| Via Types | Through vias, blind vias, buried vias, via-in-pad, filled vias, capped vias, and microvias are available upon engineering review. |
| Surface Finishes | HASL, lead-free HASL, ENIG, OSP, immersion tin, immersion silver, hard gold, and other finishes based on project requirements. |
| Solder Mask | Green, black, white, red, blue, yellow, and custom solder mask colors subject to material availability. |
| Silkscreen | White, black, and selected silkscreen color options depending on solder mask contrast and project requirements. |
| Controlled Impedance | Available for high-speed, RF-related, and signal-sensitive designs. Stack-up and impedance targets should be provided for engineering confirmation. |
| Special Features | Gold fingers, edge plating, castellated holes, countersinks, counterbores, panelization, scoring, routing, and special cutouts available upon review. |
| Electrical Testing | Electrical testing can be arranged according to the board design, netlist availability, production quantity, and project requirements. |
| Quality Standard | Manufactured according to applicable IPC requirements and approved production documentation. |
| Order Volume | Supports prototype, NPI, low-volume, and production FR-4 PCB orders. |

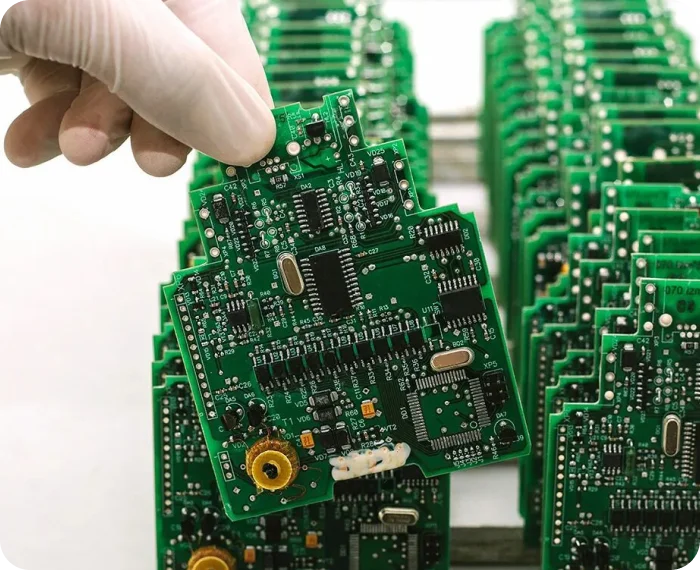

Custom FR-4 PCB Solutions
For every custom FR-4 PCB project, Geyuan Electronics’ engineering team reviews the required glass transition temperature (Tg), decomposition temperature (Td), Z-axis expansion coefficient, dielectric constant (Dk), dissipation factor (Df), comparative tracking index (CTI), flame retardancy, halogen requirements, and the approved materials list. Following the quotation, we clearly outline the proposed manufacturing processes, material grades, approved alternatives, stack-up revisions, and any material certifications required upon shipment. This approach provides clear specifications for our internal engineering department while establishing a defined scope of materials for both our procurement team and the customer.
Custom FR4 PCB Supplier
We offer a wide range of FR4 PCBs—customizable in terms of dimensions, colors, designs, configurations, thicknesses, and other specifications—to meet your exact requirements. Beyond standard FR4 PCBs, Geyuan Electronics provides comprehensive services including prototyping, layout, research, and planning to support your projects and business operations. Our expert team offers dedicated design support tailored specifically for FR4 PCBs; we optimize your designs to ensure superior electrical performance, signal integrity, and manufacturability while adhering to industry standards for reliable functionality. Contact us today to learn more or to discuss your FR4 PCB needs, and experience the reliability and excellence of our high-quality manufacturing services.
Change Control for FR4 PCBs: From Prototype to Mass Production
FR4 PCB prototype designs should specify approved materials, stack-up configurations, copper structures, via routing, impedance measurement methods, surface finishes, and inspection scopes. Subsequent production can directly reference the released specifications rather than relying on generic FR4 descriptions. If material substitutions are required, or if changes occur regarding copper, geometry, stack-up, panelization, or test scope, the impact must be evaluated prior to release. Formal written approval prevents cost-saving measures during procurement from inadvertently leading to unplanned electrical, thermal, or reliability changes.
Prototype
Resolve issues regarding Design for Manufacturability (DFM), materials, stack-up, and acceptance criteria
Pilot Run
Verify released fabrication drawings and required documentation
Production
Control substitutions, deviations, and modifications for repeat orders
FR-4 PCB Types We Manufacture
Single-Sided FR-4 PCB
Double-Sided FR-4 PCB
Multilayer FR-4 PCB
High-Tg FR-4 PCB
Rigid FR4 PCB
Rigid-Flex FR4 PCB
Heavy Copper FR4 PCB
HDI FR4 PCB
Thick FR4 PCBs
Geyuan Electronics’ FR4 PCB Manufacturing and Testing Facilities
Geyuan Electronics operates a facility spanning 12,400 square meters, featuring a 2,600-square-meter cleanroom, five SMT production lines, and three DIP production lines. We are equipped with precision drilling machines, plating systems, and etching equipment for accurate circuit patterning, alongside reflow and wave soldering systems. Our advanced X-ray and AOI equipment ensures high-quality PCB production. Our in-house manufacturing capabilities allow us to respond flexibly to urgent production needs and adapt to evolving market demands. Our robust capacity enables us to efficiently handle everything from prototype orders as small as five units to high-volume production runs exceeding 10,000 units per month, all while maintaining consistent quality across all order sizes. This flexibility is particularly valuable for industrial clients who need to manage the entire product lifecycle, from R&D through to mass production.
Standard Lead Times
Geyuan Electronics has a monthly FR4 production capacity exceeding 100,000 square meters and offers scalable production schedules to meet needs ranging from prototyping to mass production.
- Prototyping (1–10 units): 5–7 working days
- Small-batch production (50–500 units): 7–10 working days
- Mass production (over 1,000 units): 12–15 working days
- Expedited services are available for urgent requirements.
FR4 PCB Core Manufacturing Methods
The choice between pattern plating and negative plating depends on circuit density, conductor width/spacing, and production volume, making it a critical decision in the FR4 PCB manufacturing process:
Pattern Plating Process
Pattern plating is a widely used method in FR4 PCB manufacturing that deposits copper only within the areas defined by the circuit pattern. This method allows for precise control over copper thickness and produces reliable conductive patterns.
Negative Plating Process
The negative plating process removes excess copper from the panel, leaving behind only the circuit traces. This method is cost-effective, suitable for high-volume production, and helps ensure consistent quality in the manufacturing of multilayer FR4 PCBs.
Advanced FR4 PCB Fabrication Technologies
These advanced processes support the production of high-reliability FR4 PCBs for telecommunications, medical, and automotive applications:
Laser Direct Imaging (LDI) Technology
Laser Direct Imaging (LDI) technology achieves superior precision in fine-line circuitry, minimizes alignment errors, and supports high-density FR4 PCB designs.
Metallization Technology
Metallization techniques, including electroless copper plating, ensure strong interlayer bonding and reliable via connections—critical factors in the production of multilayer FR4 PCBs.
Drilling Technology
Drilling techniques such as mechanical drilling and laser drilling enable precise via formation. Mechanical drilling is suitable for through-holes, while laser drilling is used for micro-via structures in advanced FR4 HDI PCB designs.
Rigorous Quality Control and Production Processes for FR4 PCBs
To ensure that every batch of custom FR4 PCBs meets customer design and quality standards, Geyuan Electronics implements comprehensive quality monitoring throughout the entire process—from incoming raw material inspection to final product delivery. We strictly vet authentic FR4 substrates, copper foils, solder masks, and other raw materials, eliminating substandard components at the source. During production, we utilize automated equipment for exposure, etching, drilling, and lamination to minimize human error and enhance product consistency. Furthermore, upon completion, all FR4 PCBs undergo multiple inspections, including visual checks, dimensional tolerance verification, electrical performance testing, impedance testing, and thermal performance validation. For multilayer FR4 PCBs, we also conduct lamination quality checks and inner-layer circuit testing to prevent open circuits, short circuits, and potential quality risks. Each batch comes with complete inspection records to facilitate quality traceability and after-sales support.
Industry Certifications and Quality Standards
Geyuan Electronics holds comprehensive quality certifications that demonstrate our commitment to maintaining consistent high quality across automotive, medical, aerospace, and consumer electronics applications. We ensure compliance with the following industry standards:
- ISO 9001:2015: Quality Management System
- ISO 13485:2016: Quality Management for Medical Devices
- RoHS Compliance: Environmental and Material Safety
- UL Certification: Safety and Performance Standards
- IPC Standards: Compliance with IPC-A-600 (Acceptability of Printed Boards) and IPC-2221 (Design Standard) ensures manufacturing quality consistency.
Surface Finish Options
Choosing the right PCB surface finish is essential for ensuring solderability, electrical reliability, and long-term performance. At Geyuan Electronics, we provide a full range of PCB surface finish solutions to match your product’s design, performance, and cost requirements:
HASL (Hot Air Solder Leveling)
A cost-effective surface finish suitable for PCB prototype assembly, though not ideal for fine-pitch components.
ENIG (Electroless Nickel Immersion Gold)
Widely used in high-reliability PCB assembly due to its flat surface and excellent solderability.
OSP (Organic Solderability Preservative)
Suitable for low-cost PCB production, OSP offers good oxidation resistance.
Immersion Silver / Immersion Tin
With low contact resistance and a flat surface, immersion silver and immersion tin are ideal choices for high-frequency PCBs.
Gold Fingers
Gold fingers are designed for edge connector applications requiring durability and frequent mating/unmating.
Packaging, Logistics, and Inventory Management
Geyuan Electronics offers high-quality FR4 PCB technology alongside comprehensive order processing and logistics solutions. With production facilities in Dongguan and Shenzhen, China, we cater to volume requirements ranging from rapid prototyping to mass production, seamlessly transitioning your projects from sample stage to full-scale manufacturing. Our robust team—comprising experts in technology, quality control, logistics, production, and sales—provides end-to-end support to ensure your specific needs are met and managed effectively. Beyond standard “build-to-order” processes, we specialize in various logistics arrangements designed to optimize delivery readiness, such as on-demand shipping, consignment inventory, split sea/air shipments for product series, and flexible framework agreements.
Purchase affordable PCB prototypes online directly from the manufacturer
At Geyuan Electronics, we offer affordable PCB prototypes that can be ordered via online instant quoting or custom requests. We provide a wide range of material choices and options online, including layer counts, copper weights, board thicknesses, solder mask colors, special printing, and surface finishes. Thanks to our “shared production” concept, our prototype prices are exceptionally low; different designs can be manufactured together on the same production panel. This reduces initial costs and setup time, enabling us to offer highly competitive prices while ensuring top-notch quality.
Industry Applications for Custom FR4 PCBs
As a leading supplier of FR4 PCBs (including rigid-flex variants), Geyuan Electronics manufactures high-quality boards designed to meet the unique performance requirements of diverse industries. Below are some key applications where our FR4 PCBs excel:
New Energy
Medical Equipment
Automotive and Electric Vehicles (EVs)
Telecommunications and Networking
Consumer Electronics and IoT
LED and Lighting
Power Electronics
Data Communications and Servers
Industrial Equipment
Exploring Alternatives to FR4 PCB Materials
When FR4 falls short of meeting advanced requirements, we offer alternative PCB solutions to help customers across various industries achieve optimal performance. Our engineering team can guide you through material selection and stack-up design, ensuring your products meet both technical and commercial objectives.
Aluminum PCB
Rigid PCB
Copper‑Core PCB
High-TG PCB
High Frequency PCB
High Speed PCB
HDI PCB
Rogers PCB
Heavy Copper PCB
Flexible PCB
Rigid-Flex PCB
Ceramic PCB
FAQ
FR4 is a flame-retardant glass-epoxy substrate known for its excellent insulation, mechanical strength, heat resistance, and cost-effectiveness. Compatible with the design and assembly processes of most electronic products, it is the preferred material for both consumer and industrial PCBs.
We provide one-stop FR4 PCB manufacturing and SMT assembly services—including component sourcing, soldering, testing, and packaging—delivering a complete solution from design files to finished circuit boards.
For standard FR4 PCBs, our typical lead times are:
- Prototyping (1–10 units): 24–48 hours for simple designs;
- Standard production (10–500 units): 5–7 working days;
- Mass production (over 500 units): 8–15 working days, depending on quantity and complexity.
We also offer expedited services for time-sensitive projects, with simple 1–4 layer FR4 boards completed within 24 hours. For industrial clients with fixed production schedules, we offer capacity reservation plans to ensure delivery aligns with your production timeline. All lead times include our comprehensive quality inspection process to ensure every board meets our strict standards.
Our engineering team offers comprehensive DFM (Design for Manufacturability) reviews at no extra cost, identifying potential manufacturing issues and opportunities for cost optimization.
We manufacture FR4 PCBs ranging from 1 layer to over 32 layers, with minimum trace spacing of 3mil/3mil (standard) and 2mil/2mil (for advanced designs). Our capabilities include High-Density Interconnect (HDI) with microvias (diameters as small as 0.1mm), blind and buried vias, impedance control (±10%), heavy copper (up to 15oz), and various specialized features. We offer a wide range of FR4 materials—including standard FR4 (Tg 130–140°C), mid-Tg (150–160°C), and high-Tg (170–180°C)—to meet lead-free assembly requirements. All circuit boards undergo comprehensive testing, including Automated Optical Inspection (AOI), electrical testing, and impedance verification for critical circuits.
Our production processes comply with RoHS, REACH, and UL standards, and all relevant documentation is available upon request. We hold ISO 14001 environmental management system certification and can manufacture products meeting IPC Class 2 and Class 3 standards as required. For specific industries, we also support additional compliance requirements, including standards for medical devices (ISO 13485), the automotive industry (IATF 16949), and aerospace (AS9100). Our facilities in China and Indonesia undergo regular compliance audits regarding environmental and safety regulations.
Eligible orders may qualify for 24-hour expedited service following a review of materials, documentation, quantities, special processes, testing scope, and current production capacity. The confirmed shipping schedule will be indicated on the quotation.
While standard FR4 is suitable for many digital and mid-frequency applications, it is not the universal choice for high-frequency designs. Its dielectric constant and dissipation factor vary depending on the material system, glass type, resin content, frequency, and testing method. As frequency increases, changes in dielectric loss and dielectric properties become more pronounced; therefore, engineers may need to consult specific FR4 datasheets or consider using lower-loss laminates to meet the demands of high-performance RF and high-speed applications.
Unlike low-cost suppliers, Geyuan Electronics guarantees product quality that meets IPC-A-610 and ISO certification standards. We offer a wide range of FR4 materials (standard FR4, high-Tg FR4, black FR4, and FR4-based flexible PCBs), along with 3–5 day rapid prototyping and worldwide shipping. Our engineering support team can assist you in optimizing your PCB design to enhance signal integrity and reduce costs.
In FR4 PCB manufacturing, pattern plating—which involves depositing copper directly onto the patterned areas—is typically used for through-hole plating and fine-line circuitry. Negative plating, on the other hand, involves applying a photoresist layer to the non-patterned areas prior to plating, allowing for better control over the plating results on high-density PCBs. The choice between these methods depends on design complexity, minimum trace/spacing requirements, and cost-effectiveness. Consulting with a PCB manufacturer can help determine the process best suited to your project.
Get a Quote for FR-4 PCB Manufacturing
Send the board files, stackup intent, quantity, finish, and assembly data if PCBA follows. Geyuan Electronics will review the FR-4 construction before tooling so the release can repeat cleanly.
